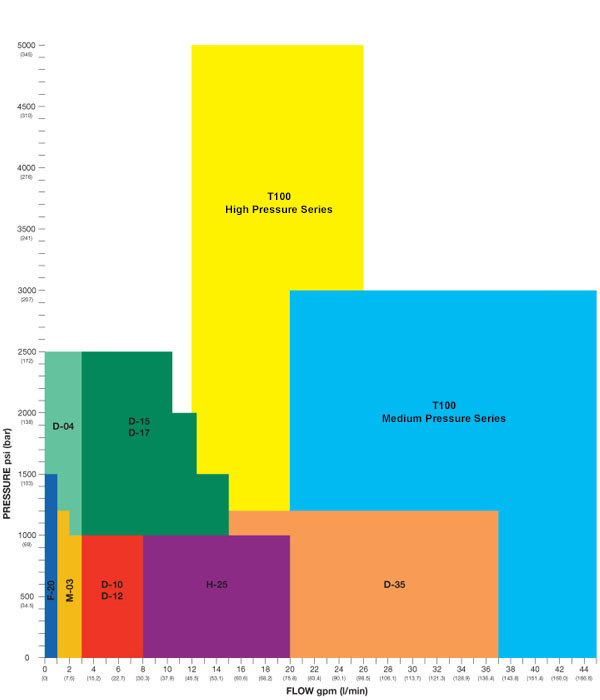

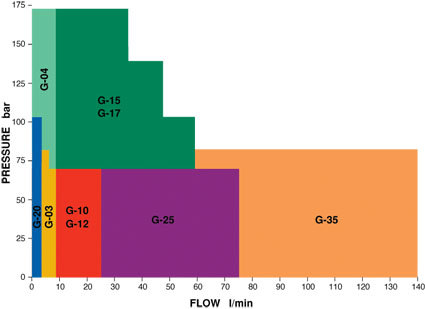

The graph above displays the maximum flow capacity at a given pressure for each model series. The table below lists the maximum flow capacity and maximum pressure capability of each model series.
Please Note: Some models do not achieve maximum flow at maximum pressure. Refer to the individual model specifications in this section for precise flow and pressure capabilities by specific pump configuration.
| Maximum Capacity gpm (l/min) | Maximum Discharge Pressure psi (bar) | Maximum Operating Temperature F (C)** | Maximum Inlet Pressure psi (bar) | |||
| Model | Non-metallic* | Metallic | Non-metallic | Metallic | ||
| F20 | 1.0 (3.8) | 350 (24) | 1500 (103) | 140º (60º) | 250º (121º) | 250 (17) |
| M03 | 3.1 (11.7) | 350 (24) | 1200 (83) | 140º (60º) | 250º (121º) | 250 (17) |
| D04 | 2.9 (11.2) | N/A | 2500 (172) | N/A | 250º (121º) | 500 (34) |
| D10 | 8.8 (33.4) | 350 (24) | 1500 (103) | 140º (60º) | 250º (121º) | 250 (17) |
| D12 | 8.8 (33.4) | N/A | 1000 (69) | N/A | 250º (121º) | 250 (17) |
| D15 & D17 | 15.5 (58.7) | N/A | 2500 (172) | N/A | 250º (121º) | 500 (34) |
| H25 | 20.0 (75.9) | 350 (24) | 1000 (69) | 140º (60º) | 250º (121º) | 250 (17) |
| D35 | 36.5 (138) | N/A | 1500 (103) | N/A | 250º (121º) | 500 (34) |
| D66 | 62.5 (236.6) | 250 (17) | 1000 (69) | 120º (49º) | 200º (93.3º) | 250 (17) *** |
* 350 psi (24 bar) maximum with PVDF liquid end; 250 psi (17 bar) maximum with Polypropylene liquid end.
** Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).
*** 50 PSI (3.4 Bar) for non-metallic.
| Maximum Capacity | Maximum Discharge Pressure | Maximum Inlet Pressure | Maximum Operating Temperature | |||||
| Model | (gpm) | (l/min) | (psi) | (bar) | (psi) | (bar) | (F)* | (C)* |
| T60 | 93 | 354 | 1000 | 69 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T100E | 96 | 366.1 | 1500 | 103 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T100F | 76.5 | 289.6 | 1850 | 128 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T100H | 68 | 257.8 | 2100 | 145 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T100K | 45 | 170.4 | 3000 | 207 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T100M | 38 | 143.8 | 3500 | 241 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T200E | 202 | 764 | 1500 | 103 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T200F | 172 | 651 | 1750 | 150 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T200G | 145 | 548 | 2000 | 138 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T100S | 26 | 98.4 | 5000 | 345 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T200K | 93 | 352 | 3000 | 207 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T200M | 83 | 314 | 3500 | 241 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T200P | 72 | 272 | 4000 | 276 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| T200Q | 63 | 238 | 4500 | 310 | 500 | 34 | 180 ̊ | 82.2 ̊ |
* Consult factory for correct component selection for temperatures above 180 ̊F (82 ̊C) or below 40 ̊F (4 ̊C)
| Maximum Capacity | Maximum Discharge Pressure | Maximum Inlet Pressure | Maximum Operating Temperature | |||||
| Model | (gpm) | (l/min) | (psi) | (bar) | (psi) | (bar) | (F)* | (C)* |
| Q155E | 157 | 595 | 1500 | 103 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q155F | 127 | 490 | 1850 | 128 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q155H | 111 | 421 | 2100 | 145 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q155K | 78 | 295 | 3000 | 207 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q155M | 63 | 238 | 3500 | 241 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q330E | 330 | 1249 | 1500 | 103 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q330F | 280 | 1060 | 1750 | 120 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q330G | 230 | 871 | 2000 | 138 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q330K | 153 | 579 | 3000 | 207 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q330M | 136 | 514 | 3500 | 241 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q330P | 118 | 446 | 4000 | 276 | 500 | 34 | 180 ̊ | 82.2 ̊ |
| Q330Q | 104 | 393 | 4500 | 310 | 500 | 34 | 180 ̊ | 82.2 ̊ |
* Consult factory for correct component selection for temperatures above 180 ̊F (82 ̊C) or below 40 ̊F (4 ̊C)
