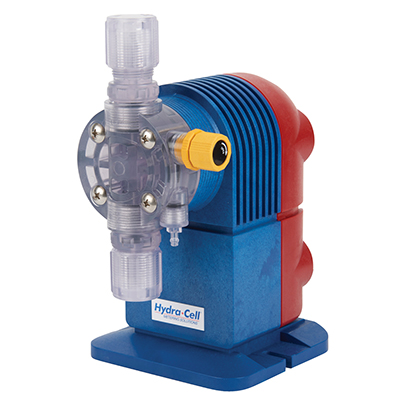

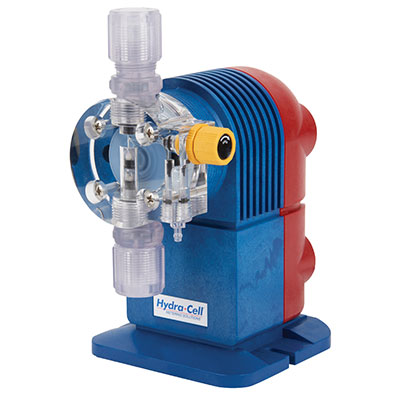

SM Models Manual Control
| |
|---|
| Maximum Flow Rate: | 100 ml/min (1.59 gph / 6.00 lph) |
| Maximum Pressure: | 217 psi (15 bar) |
Low Cost, Easy to Operate
- Features a simple hand-operated speed stroke dial.
- Runs at a maximum of 300 strokes per minute and a minimum of 15 strokes per minute.
- Models for chemical injection, high-pressure boiler feed, and outgassing fluids.
- Temperatures ranges (ambient and transferring liquid) from 32˚F to 104˚F (0˚C to 40˚C).
- Light-weight models either 3.75 lbs. (1.7 kg) or 4.0 lbs. (1.8 kg).
- Low-noise, less than 85 dB.
- Stroke length fixed at 1.0 mm.
- Minimal parts for easy maintenance.
- Safety mechanisms to prevent air lock.
- Spare parts kits available to extend pump service life.
SM Series Resources
SM – Specifications
| |
|---|
| Stroke Speed | 15 to 300 strokes/minute (manual dial setting) |
| Stroke Length | Fixed at 1.0 mm |
| Maximum Allowable Viscosity | 50 mPa (50 cPs) |
| Temperature Ranges | Ambient: 32˚F to 104˚F (0˚C to 40˚C); |
| Transferring Liquid: 32˚F to 104˚F (0˚C to 40˚C); |
| no freezing allowed |
| Ambient Humidity | 35% to 85% RH |
| Environmental Protection | IEC standard; IP65 or equivalent (waterproof & dust-resistant) |
| Altitude of Installation Location | Less than 3,280 ft. (1,000 m) |
| Noise Level | Less than 85 dB |

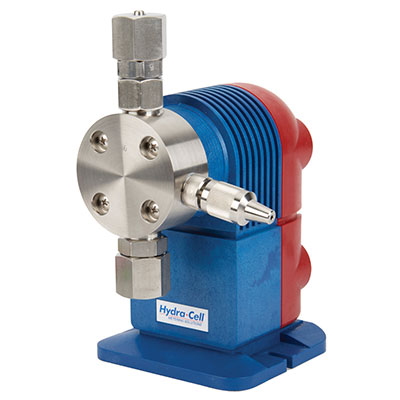

| Weight | PVC/PDVF/316SS Models 3.75 lbs. (1.7 kg) |
| Acrylic 030 & 03R Models 3.75 lbs. (1.7 kg) |
| Acrylic 060/100 & 06R/10R Models 4.0 lbs. (1.8 kg) |
| Power Supply | Rated Voltage AC 100 to 240 V (±10%) |
| Phase/Frequency | 1-phase/50 or 60 Hz |
| Maximum Current | 2.0 A |
| Maximum Power Consumption | 200 VA |
| Average Power Consumption | 15 W |
Simple, compact design reduces initial investment and lowers maintenance costs.
Hydra-Cell Heavy Duty Pumps have proven their performance and reliability in the toughest industrial equipment and process applications.
When we say “Simply Built to Last”, we mean it!
